Have you ever wondered what happens under your lawn after you flush a toilet or run the kitchen sink? For thousands of homeowners across the Tampa Bay area, the wastewater system sitting beneath the grass is a complete mystery. Understanding how your household waste moves underground is the first step toward avoiding expensive plumbing emergencies, and a clear septic tank diagram is the easiest way to make sense of it all. This visual roadmap shows exactly where your tank sits, how wastewater flows through each section, and how treated water safely enters the ground.
In Florida, where sandy soils and high water tables are common, knowing your specific system layout is especially critical. This guide breaks down a standard setup into plain language so you can easily protect your home, schedule routine maintenance on time, and keep your yard dry and healthy year-round.
What Is a Septic Tank Diagram?
A septic tank diagram is a detailed visual drawing that shows the layout, parts, and flow path of an underground septic system. It highlights the main house pipe, septic tank chambers, baffles, filters, outlet pipe, and drain field.
Think of this diagram as the owner’s manual for your home’s underground plumbing. It tells you exactly where components live in your yard. Having this visual guide helps you avoid digging up your lawn when it is time for routine maintenance. It also helps prevent accidental damage during landscaping, pool installations, or patio builds.
For Florida property owners, a clear diagram is especially useful. Many properties in Hillsborough, Pinellas, and Pasco counties rely on specific setups to deal with shallow groundwater. Whether you have a standard gravity system, an engineered mound, or an aerobic treatment unit (ATU), a clear diagram takes the guessing out of septic care.
Key Components on a Septic Tank Diagram
Every basic septic tank diagram features six core parts that work together to process household wastewater safely. These parts include the main inlet pipe, the septic tank, internal baffles, the effluent filter, the outlet pipe, and the drain field.
Let us look at each part shown on the diagram and see how it works in real life.
1. Main Sewer Line (Inlet Pipe)
The main inlet pipe is the entry point that carries all wastewater from your toilets, sinks, showers, and washing machines directly into the septic tank.
On a diagram, this pipe slopes downward from your home foundation toward the tank entrance. Proper slope is critical. If the pipe is too flat, waste moves too slowly and creates clogs. If it slopes too steeply, liquids flow too fast and leave solid waste behind.
2. The Septic Tank and Internal Chambers
The septic tank is a watertight box buried underground, usually made of concrete, fiberglass, or plastic, where solid waste settles into three distinct layers.
When you look at a cross-section diagram, you will notice the tank is divided into two main compartments separated by a partition wall:

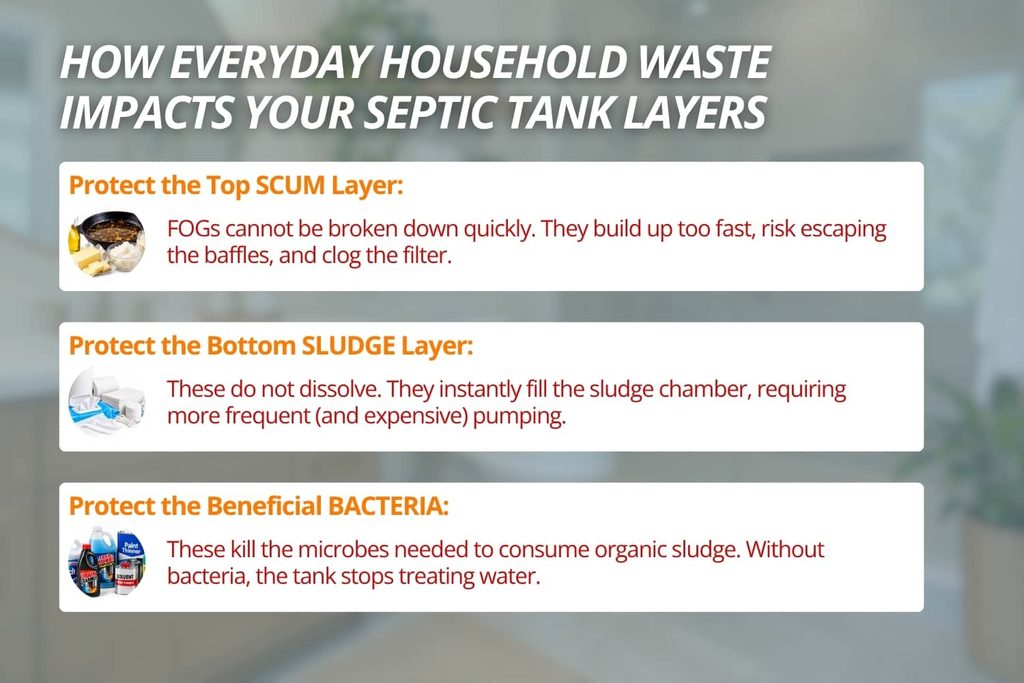

- Scum Layer (Top): Oils, fats, grease, and light floating debris rise to the surface.
- Liquid Layer / Effluent (Middle): Clarified water sits between the top scum and bottom sludge.
- Sludge Layer (Bottom): Heavy organic solids sink to the floor, where natural bacteria break them down over time.
In a two-chamber tank, wastewater flows from the first chamber into the second chamber. This multi-stage process ensures that heavy solids remain in the tank rather than washing out into your soil.
3. Inlet and Outlet Baffles
Baffles are T-shaped pipes or concrete barriers inside the tank that prevent floating scum and heavy sludge from exiting into the drain field.
- Inlet Baffle: Directs incoming wastewater down into the middle liquid layer so it does not disturb the settled sludge layer at the bottom.
- Outlet Baffle: Prevents the top scum layer and bottom solids from leaving the tank as treated water flows out.
4. The Effluent Filter
An effluent filter sits inside the outlet baffle to trap small floating solids before water leaves the tank.
This filter acts as a safety guard for your drain field. Cleaning this filter during regular septic tank inspections keeps water flowing smoothly and prevents solid particles from clogging the drain field pipes.
5. Outlet Pipe and Distribution Box
The outlet pipe carries clarified liquid, called effluent, out of the tank and delivers it to the distribution box or direct drain field lines.
In a standard gravity system, gravity gently moves the liquid out. In homes with high water tables or low-lying lots, a pump chamber or lift station is used to pump the liquid upward to higher ground.
6. The Drain Field (Absorption Area)
The drain field is a network of perforated pipes laid in gravel-filled trenches beneath your yard that distributes liquid waste into the surrounding soil for natural filtration.
As liquid seeps through the perforated pipes, the soil acts as a biological filter. Microorganisms in the soil remove lingering bacteria, viruses, and nutrients before the water reenters the groundwater table.
| System Component | Position on Diagram | Primary Function | Common Maintenance Needs |
| Inlet Pipe | Between house and tank | Carries wastewater into tank | Clear line blockages |
| Tank First Chamber | Front section of tank | Traps heavy sludge and floating scum | Septic tank pumping every 3 to 5 years |
| Tank Second Chamber | Rear section of tank | Allows finer solids to settle | Regular visual inspection |
| Effluent Filter | Inside outlet baffle | Blocks small solids from escaping | Rinse clean during inspections |
| Lift Station (If applicable) | Between tank and drain field | Pumps liquid up to elevated field | Pump testing and float checks |
| Drain Field | Extended field in yard | Filters liquid safely through soil | Keep heavy vehicles and trees away |
Understanding how these individual parts work together makes it much easier to spot potential issues before they cause costly damage to your Florida property.
How Florida Environment Shapes Your Septic System Diagram
Florida environment and geology require specialized septic system designs due to high groundwater tables, sandy soils, and heavy seasonal rainfall.
Standard septic tank diagrams often look a bit different across Tampa, Brandon, Riverview, St. Petersburg, and rural Central Florida properties. Here is why local terrain changes how your diagram is built:
Shallow Water Tables and Sandy Soil
In many parts of Pinellas and Hillsborough counties, the groundwater table sits just a few feet below the grass. Sandy soil drains water very quickly, which means wastewater needs extra time and distance to filter before reaching the water table.
For these homes, a standard underground drain field may not meet health codes. Your diagram might show an engineered mound system. This design raises the drain field above natural ground level using clean sand fill to ensure safe clearance above groundwater.
Aerobic Treatment Units (ATUs)
Properties near sensitive Florida waterways, bayous, or Tampa Bay often use ATU systems. An ATU diagram looks similar to a miniature municipal sewage treatment plant.
It includes an electric air pump that injects oxygen into the tank. Aerobic bacteria break down waste much faster and more thoroughly than traditional anaerobic systems. These systems require routine ATU system maintenance to keep air pumps and mechanical seals running properly in hot, humid weather.
Lift Stations for Low-Lying Lots
If your property sits in a low-lying zone or near coastal waters, wastewater cannot rely on gravity alone to reach the drain field.
In these setups, your diagram will include a lift station with a submersible pump and float switches. The pump pushes effluent uphill to the elevated drain field. Checking electrical connections and float switches during routine servicing prevents pump failure during severe summer storms.
Recognizing how local soil and water levels shape your system ensures you choose the right care and maintenance strategy for your property.
Reading Your Diagram to Spot Septic Problems Early
Understanding your septic tank diagram allows you to locate buried components and recognize early warning signs of system failure.
When you know where each part sits in your yard, you can connect home plumbing symptoms to specific internal components:
- Slow Drains in Every Sink: If all drains in your house run slowly at the same time, the inlet pipe or tank inlet baffle may be blocked, or the tank might be full and overdue for pumping.

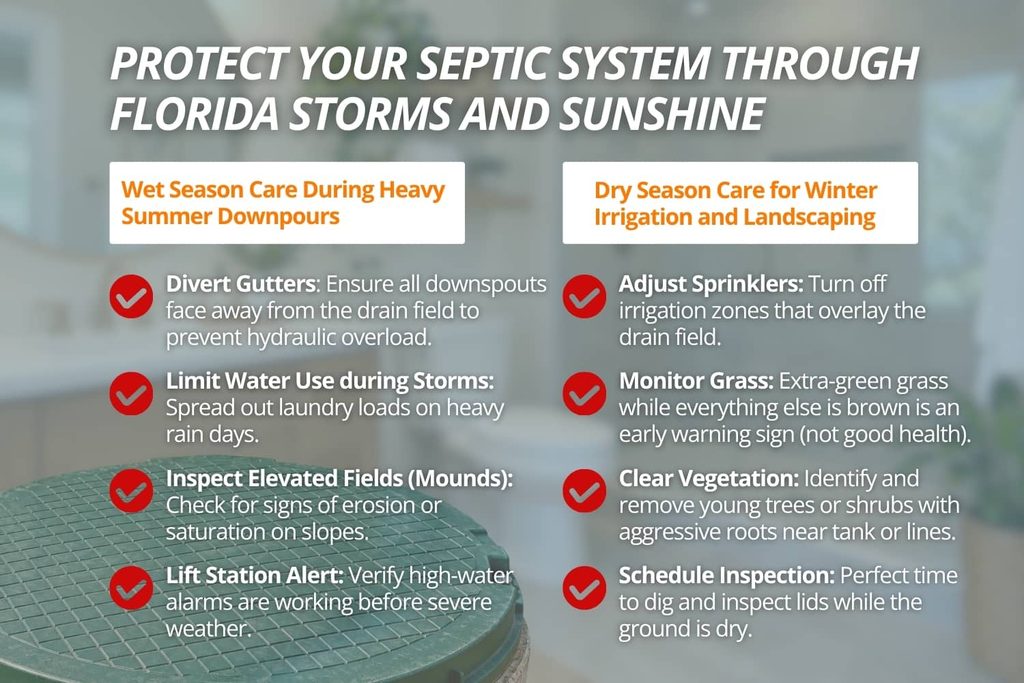

- Soggy Grass over the Drain Field: Lush, overly bright green grass or standing water above your drain field lines suggests liquid cannot sink into saturated soil. This often happens after heavy summer downpours or when drain field pipes are clogged by sludge.
- Gurgling Noise in Toilets: Hearing gurgling sounds when you drain the bathtub often points to restricted airflow or a full tank pushing air back up the inlet line.
- Foul Odors Near the Tank or Yard: Strong sewage odors near the tank access lid can mean a cracked lid, broken vent pipe, or blocked effluent filter.
By matching these physical warning signs to your system layout, you can catch minor issues before they turn into major plumbing disasters.
Related Questions to Explore
Where can I find the official layout for my septic system?
You can often request a copy of your home’s original site plan and permit through your local county health department. If those records are missing or outdated, a comprehensive septic tank inspection can accurately map out your tank, drain field, and internal components to ensure everything is functioning correctly.
What are the signs my drain field is failing?
If you notice lush, overly green grass, pooling water, or foul odors in your yard, your drain field is likely struggling to filter effluent. Addressing these issues quickly through targeted drain field repair and maintenance prevents system-wide backups and protects your yard from severe environmental damage.
How often should I have my system pumped?
Most homes require professional septic tank pumping and cleaning every three to five years to remove built-up sludge and scum. Properties with heavy water usage or commercial septic systems often need more frequent septic tank maintenance to prevent solid waste from escaping into the drain field lines.
Why do some Florida homes require ATUs or lift stations?
Because of Florida’s high water tables and sandy coastal terrain, standard gravity systems are not always viable. Many properties require engineered systems, such as Aerobic Treatment Units (ATUs) or lift stations, to properly treat and move wastewater. These specialized setups require specific ATU system maintenance to keep their pumps and mechanical parts running efficiently year-round.
When to Call a Professional
While reading a septic tank diagram gives you great insight into your property, servicing underground waste systems requires professional equipment and licensed expertise.
Call a licensed local septic technician if you notice any of the following issues:
- Sewage backing up into home sinks, showers, or toilets
- Puddles of smelly standing water above the tank lid or drain field
- High-water alarms sounding on your pump chamber or ATU control box
- Frequent clogs that remain even after clearing home drain lines
- Buying or selling a property and needing a complete septic tank inspection with site mapping
A certified specialist can perform digital camera inspections, locate hidden access lids without damaging your lawn, evaluate soil drainage, and execute needed septic repairs safely.
